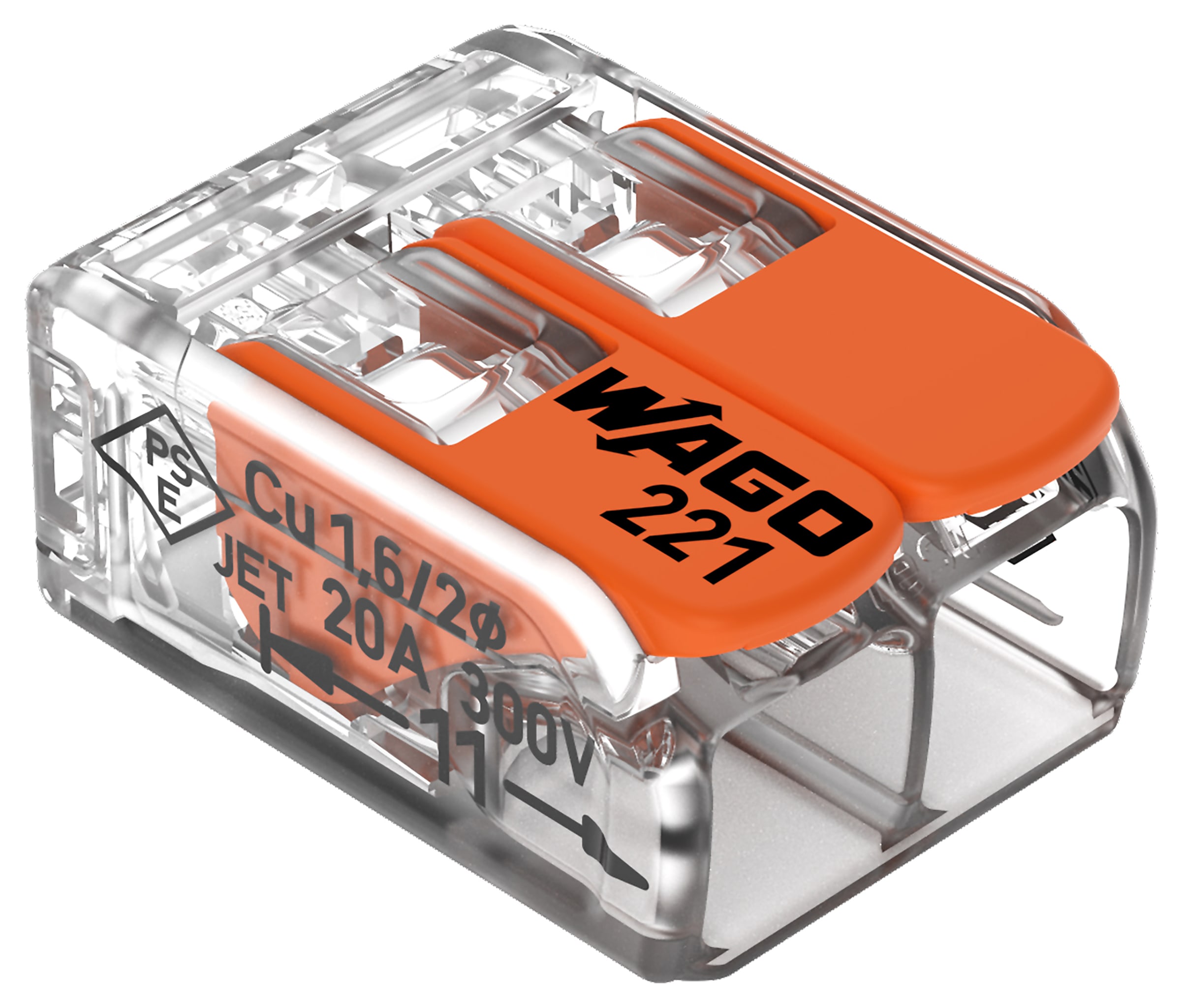

Wago 221-412 2-WAY Lever Cable Connector - 4mm² - Box of 100
Product code: 281427
£35
Out of Stock
Sorry, this product is out of stock
The 2-Way Lever Connector from Wago is a strong and durable way to connect your flexible cables. Small in size, ensuring you can place these transparent connectors in tight and not easy to reach places. Perfect if you want to keep your wires tidy and organised.
Read more
Read less
Saved to Project List
Wago 221-412 2-WAY Lever Cable Connector - 4mm² - Box of 100
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Product details
- Type: Lever connectors
- Height: 8.6 mm
- Length: 18.8 mm
- Width: 13.2 mm
- Material: Polycarbonate
- Maximum Rating: 450 V
- Connector Type: Lever connector (spring)
- Colour: Orange & clear
- Years Guaranteed: 2
- Standards Met: EN 60998 Compliant Rated as per EN60664
- Pack Quantity: 100
- Brand Name: Wago
Features & benefits
- The WAGO 221 Series compact lever connector allows fast wiring for solid, stranded and flexible conductors safely due to CAGE CLAMP ® spring technology connection
- Ease of use – pull the lever up, insert a stripped conductor and push the lever back down
- Nominal voltage: 450V
- Rated current: 32A
- Solid conductor 0.2-4mm2, stranded conductor 0.2-4mm2, fine-stranded conductor 0.14-4mm2
- Application examples: lighting and power circuits, circuit repairs and alterations, CCTV, security alarms, heating wiring
- Conductor strip length: 11mm
- EN 60998 Compliant, Rated as per EN60664
- IP2X
