ThermaSkirt BM3 RH Clockwise Feed & Return Set - 15mm
Product code: 309896
New
£125
Currently in Stock
Delivery
Within 5 days from our supplier
Supplier delivery
The ThermaSkirt BM3 RH Clockwise Feed and Return Set is a brilliant and simple way to replace your radiator, this kit (system running from left to right) connects to 15mm pipes and enables a ThermaSkirt heating system to flow and heat in a clockwise direction from a single point. ThermaSkirt connections are push fit; no soldering required. The kit includes Tectite push fit fittings, oval to 15mm round adaptors, return manifold and covers. No controls are provided and these need to be ordered and installed separately.
Read more
Read less
Saved to Project List
ThermaSkirt BM3 RH Clockwise Feed & Return Set - 15mm
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 20 mm
- Height: 170 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.50 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: RFS15BM3-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Left to right feed kit, suitable for starting at a doorway
- Suitable for remote control via a 2 port valve or manifold system
- Connects onto standard 15mm pipe - copper or plastic
- Push fit fittings for simple DIY installation
- Tough powder coat stainless steel covers for durable reliability
- Works with any wall mounted thermostat and suitable valve control
- Thermaskirt systems work well with lower flow temperatures which is proven to reduce energy consumption. Compatible with all boiler types including air-source heat pumps
- Excludes 15mm pipe

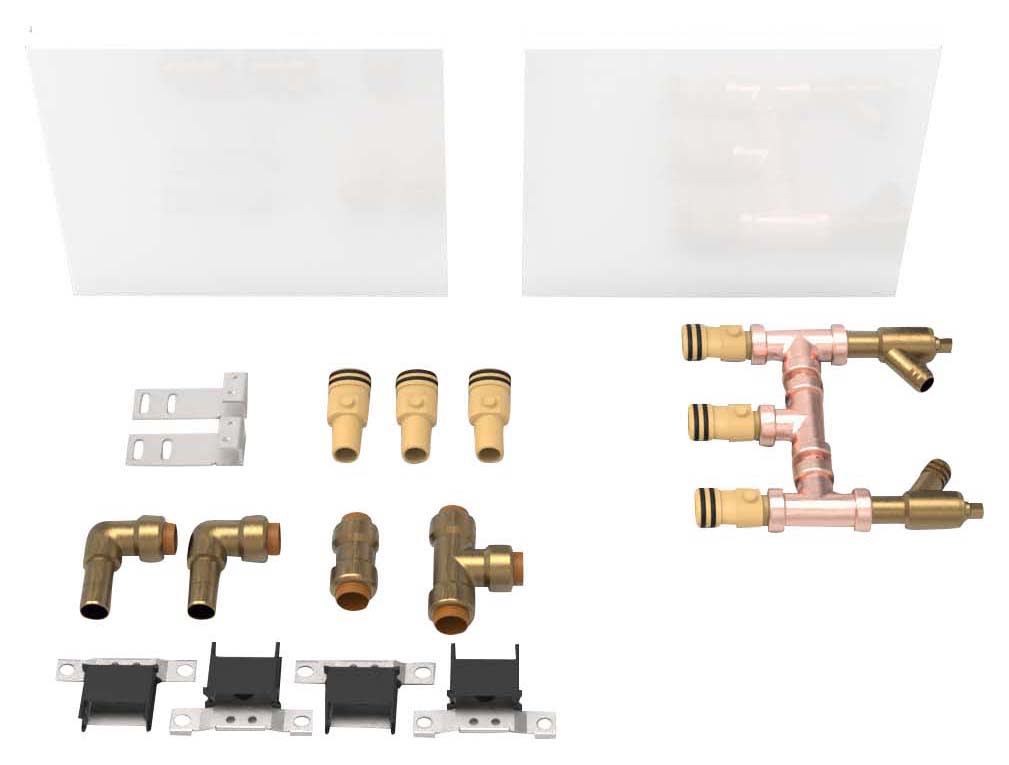

- Includes: 1 Tectite Tee's, 1 Tectite straight coupling, 2 Tectite street elbows, 2 anchor brackets, 2 connector clips, 6 oval to 15mm straight connectors, 1 return manifold, 1200mm left hand cover and 1200mm right hand cover
- 10 year guarantee (T&Cs apply)
