ThermaSkirt BM2 LH Anti-Clockwise Feed & Return Set with TRV - 15mm
Product code: 309891
New
£125
Out of Stock
Sorry, this product is out of stock
The ThermaSkirt BM2 LH Anti-Clockwise Feed Kit TRV Feed and Return Set is a brilliant and simple way to replace your radiator, this kit (system running from right to left) connects to 15mm pipes and enables a ThermaSkirt heating system to flow and heat in an anti-clockwise direction from a single point. ThermaSkirt connections are push fit; no soldering required. The kit includes Tectite push fit fittings, oval to 15mm round adaptors, return manifold and covers. An on-board TRV and flow control valve is included, meaning that manual local control can be provided at turn of a dial.
Read more
Read less
Saved to Project List
ThermaSkirt BM2 LH Anti-Clockwise Feed & Return Set with TRV - 15mm
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Product details
- Depth: 20 mm
- Height: 115 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.50 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: LTS15BM-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Right to left feed kit, suitable for starting at a doorway
- Simple 'on-board' mechanical Thermostat control
- Connects onto standard 15mm pipe - copper or plastic
- Push fit fittings for simple DIY installation
- Tough powder coat stainless steel covers for durable reliability
- Includes frost protection and a balancing valve to regulate the flow
- Thermaskirt systems work well with lower flow temperatures which is proven to reduce energy consumption. Compatible with all boiler types including air-source heat pumps
- Excludes 15mm pipe

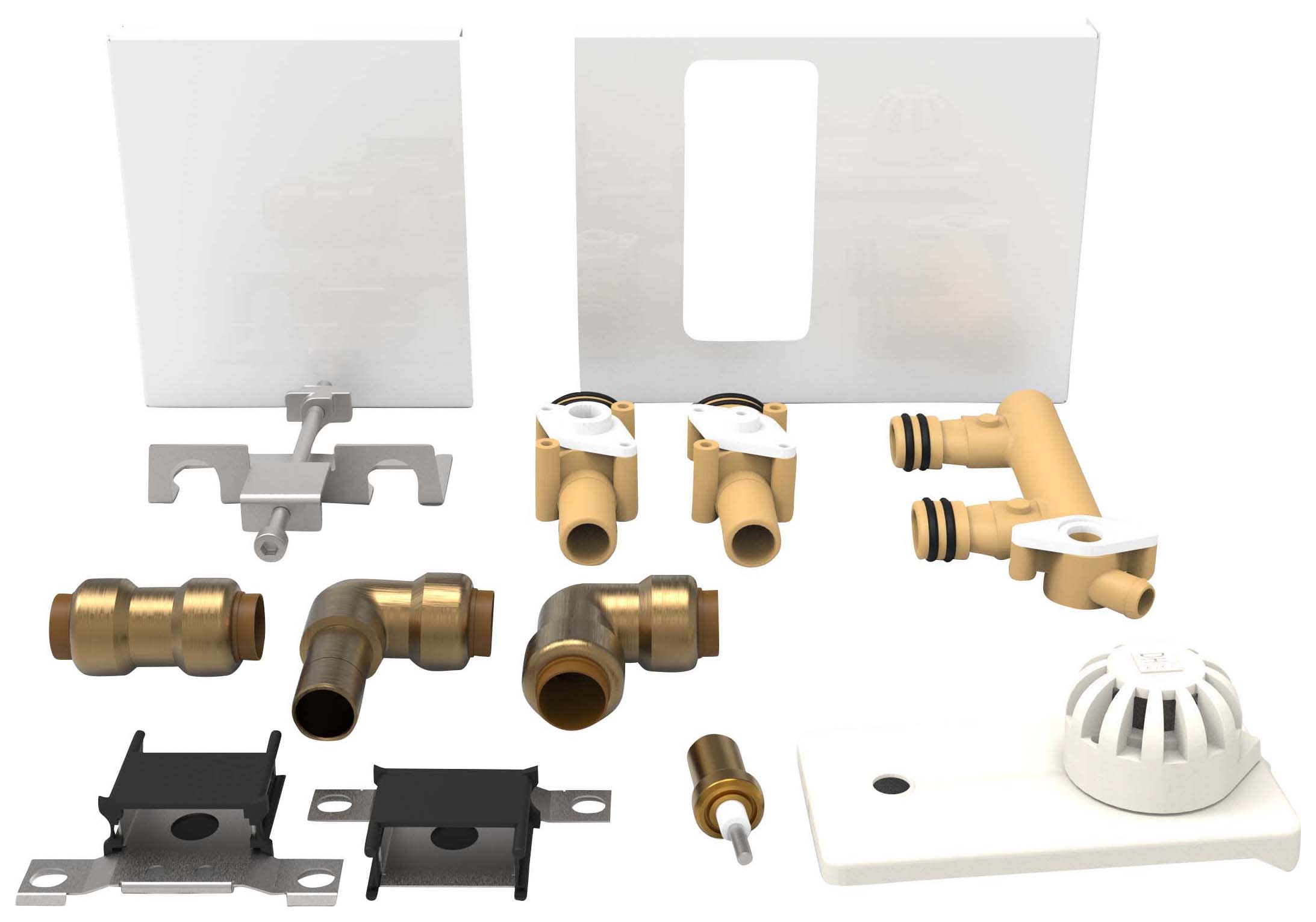

- Includes: 1 Tectite elbow, 1 Tectite straight coupling, 1 Tectite street elbow, 2 connector clips, 1 lockshield valve, 1 TRV valve, 1 valve facia kit, 1 return manifold, 110mm left hand cover and 120mm right hand cover with window
- 10 year guarantee (T&Cs apply)
