ThermaSkirt BM2 External Corner Set Connection - 90°
Product code: 309880
£29
Currently in Stock
Delivery
Within 5 days from our supplier
Supplier delivery
The ThermaSkirt BM2 External Corner Set Connection is an ingenious and simple way to negotiate a 90° (±5°) corner using a patented push fit connector. Tested to over 15 bars of pressure, the tough durable thermoplastic fittings have double Teflon® coated O-rings for a 40 year life span and silent slipperyness into the ThermaSkirt profile. The ultra-thin, color matched stainless steel cover invisibly hides the connection and provides a tamper proof protection against accidental damage and scuffing. The kit includes 90° oval connectors, retaining clips and cover.
Read more
Read less
Saved to Project List
ThermaSkirt BM2 External Corner Set Connection - 90°
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Depth: 20 mm
- Height: 170 mm
- Projection from Wall Including Radiator: 20 mm
- Pipe Inlet Size: 15 mm
- Weight: 0.36 kg
- Material: Plastic & stainless steel
- Colour: White
- Maximum Temperature: 75°
- Application: Domestic & Commercial
- Years Guaranteed: 10
- Type: Connection kits
- Manufacturer Model No: ECSBM-CW
- Brand Name: Discrete Heat
- Range Description: ThermaSkirt
Features & benefits
- Standard connection set for external corners
- Tolerant to ±5° to accommodate imperfect corners
- Double clipped to withstand up to 13 bar pressure
- Clip on colour matched - 0.5mm stainless cover makes the corner practically invisible
- Thermaskirt systems work well with lower flow temperatures which is proven to reduce energy consumption. Compatible with all boiler types including air-source heat pumps
- For chamfering the ends of the profiles use DTSK - ThermaSkirt Installation & Spare Parts Kit (Search SKU 309876)

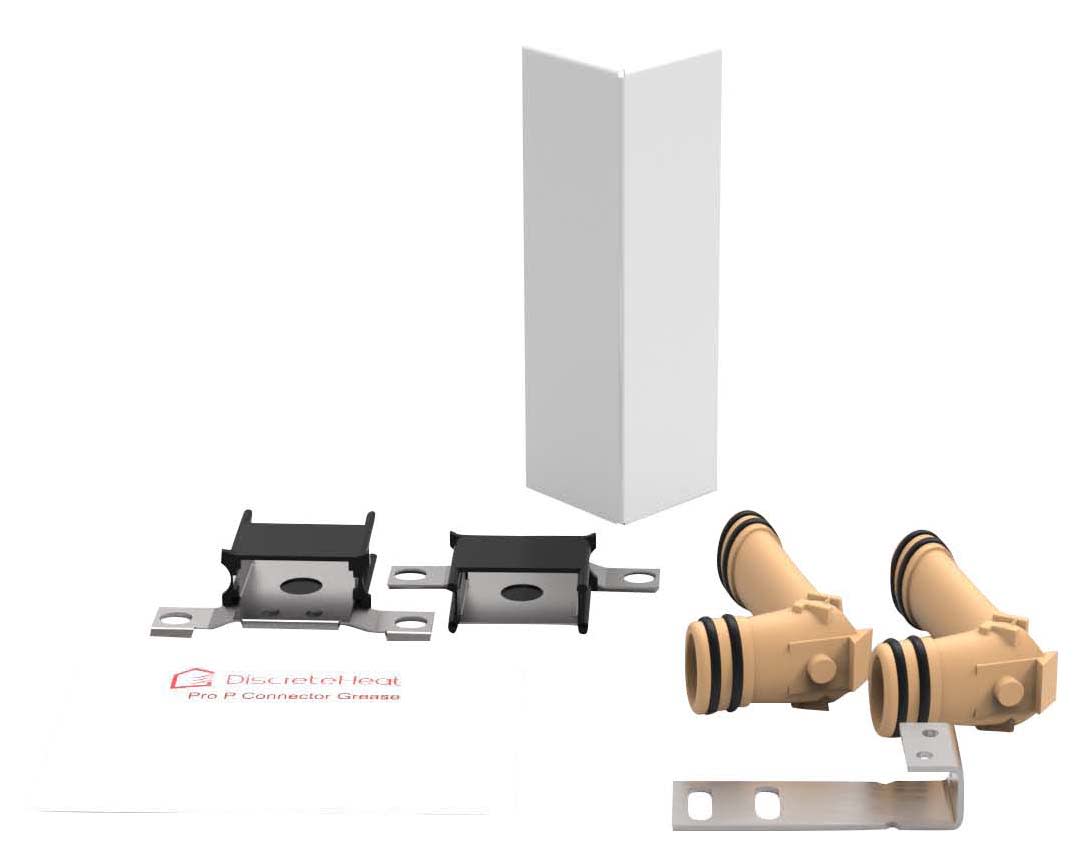

- Includes: 2 connector clips, 2 of 90° elbow connectors (oval-oval), 1 anchor brackets and 1 external 90° cover
- 10 year guarantee (T&Cs apply)
