IDEAL Industries 30-0095 Gen 2 5 Port Lever connector - Pack of 30
Product code: 296167
£13.50
Currently in Stock
Delivery
Next day available
Standard delivery

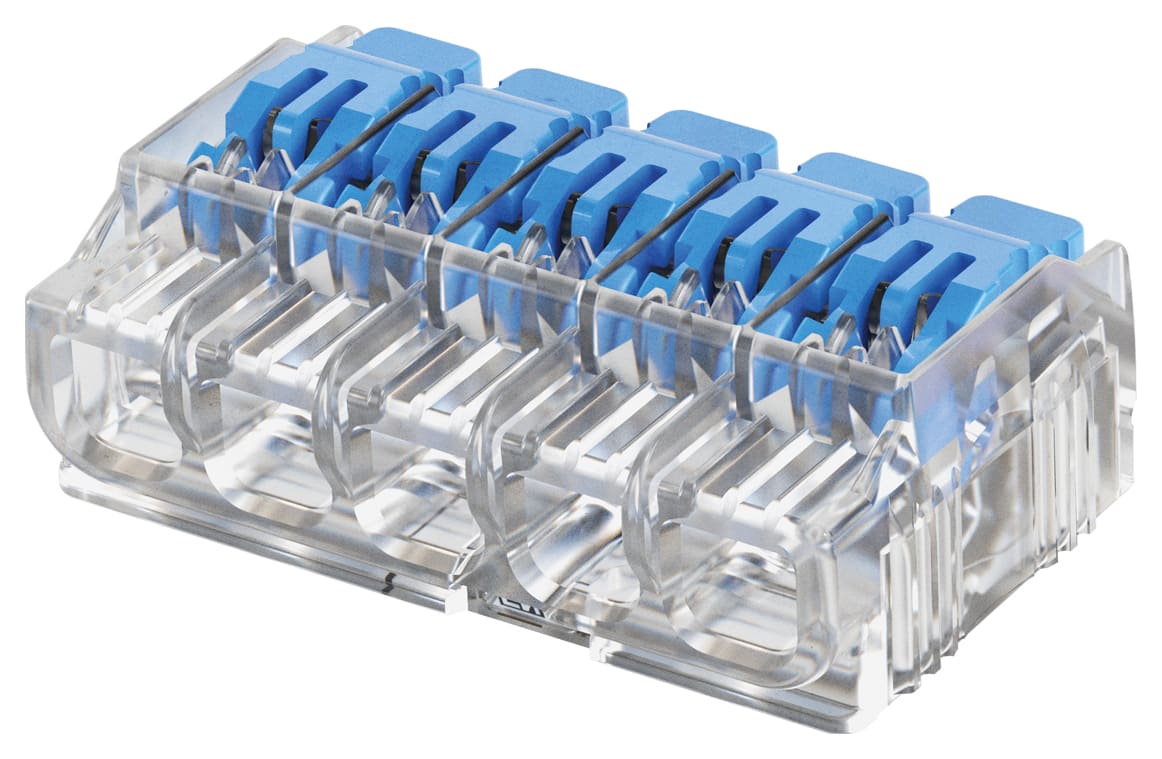

The IDEAL Industries 30-0095 Gen 2 5 Port Lever Connectors are 32A rated, re-useable and allow the use of multiple wires of different sizes and types within the same lever connector. With a clear window at the bottom of the connector you can easily inspect the connection and the built-in wire strip guide enables installers to check the correct stripping lenght and determine whether it can be pushed in. The compact design allows easier fitting in junction boxes and enclosures where space is often limited such as lighting and access control installations, which often call for multiple conductors to fit into a tight space.
Read more
Read less
Saved to Project List
IDEAL Industries 30-0095 Gen 2 5 Port Lever connector - Pack of 30
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Standard delivery
Product details
- Range: Ideal industries connectors
- Type: Wire connectors
- Height: 60 mm
- Length: 85 mm
- Width: 70 mm
- Maximum Rating: 32 A
- Colour: Blue
- Years Guaranteed: 1
- Pack Quantity: 30
- Manufacturer Model No: 30-0095
- Brand Name: Ideal
Features & benefits
- For use in all applications up to 32A including lighting, access control, radial and final ring circuits
- Releasable connector – for solid, stranded and flexible wires
- Wire clamping range: 0.2mm² to 4.0mm² for solid and rigid stranded wires (7 strands) 0.14mm² to 4.0mm² for flexible wires
- Innovative levers – opens in the opposite direction of insertion points
- Compact design – suits tight spaces
- Easy to use - no need to lift the levers when using on solid wire
- Continuity check port - for testing
- Clear shell - allows for verification of connection
- Secure your cables in seconds – no screwdriwer, no crimping, just strip, push, connect
