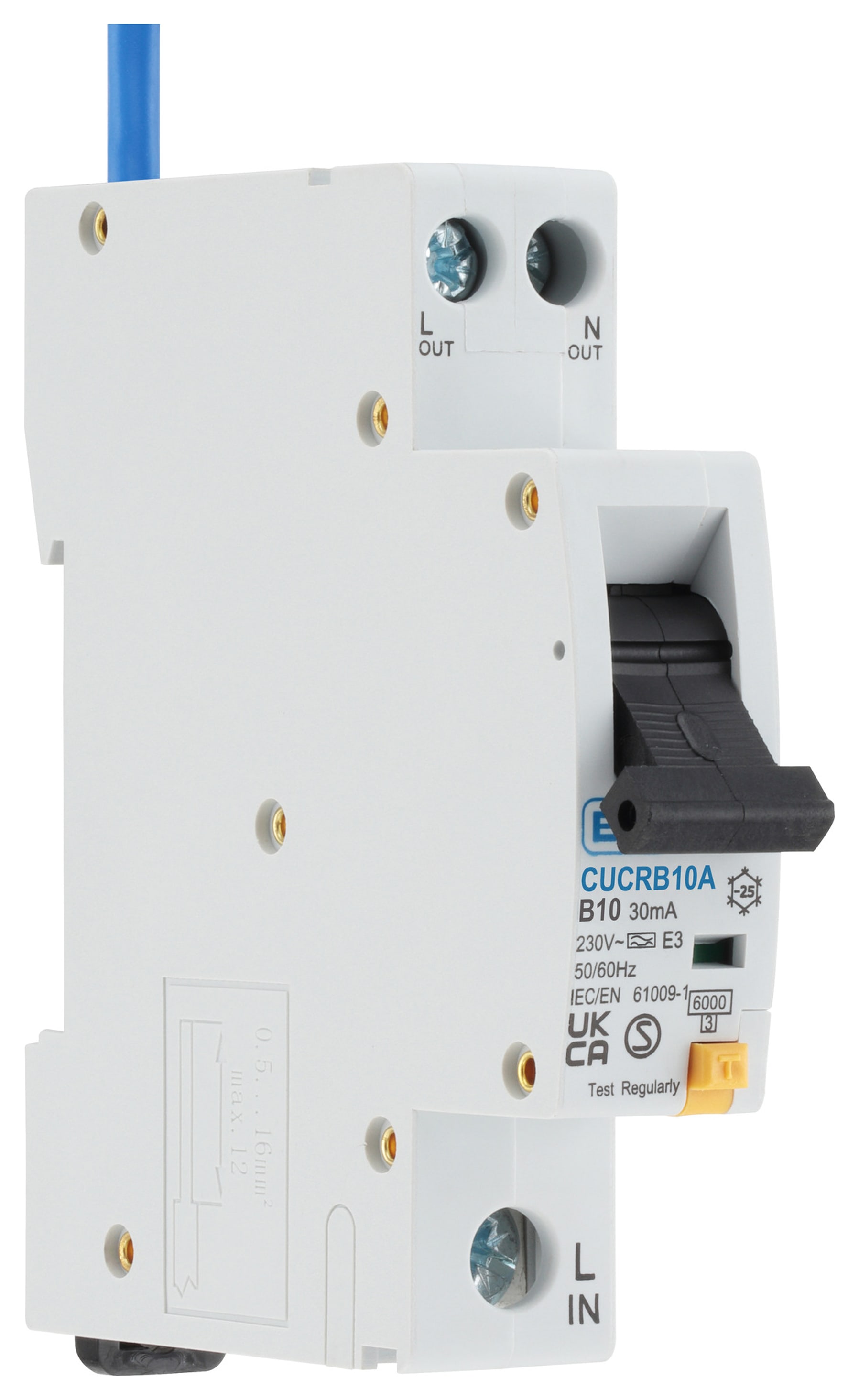

BG Fortress Compact RCBO 30mA Type A 10A B curve
Product code: 308516
£23
Currently in Stock
Delivery
Within 2 days from our supplier
Supplier delivery
The BG Fortress range of B curve Type A 30mA Compact RCBO devices offer superior protection against short circuit, overload and earth leakage faults with a 6kA breaking capacity, 3-5 times the full load tripping current and can be fitted into any BG Fortress range of consumer Unit or Enclosure and with being the same size as an MCB offers additional wiring space within the consumer unit.
Read more
Read less
Saved to Project List
BG Fortress Compact RCBO 30mA Type A 10A B curve
added to "My Project List".
You are not logged in to save your list permanently. Until you log in, your list will be saved temporarily and can only be accessed from the device you are using now.
Supplier delivery
Product details
- Current Rating: 10 A
- Depth: 77 mm
- Height: 90 mm
- Width: 18 mm
- Material: Nylon
- Colour: Grey
- Configured For: BG fortress consumer units
- Type: RCDs
- Manufacturer Model No: CUCRB10A-01
- Country Origin: CHINA
- Brand Name: British General
Features & benefits
- Suitable for use with BG Fortress consumer units
- Positive contact status indication
- B curve
- Device capable of being locked in 'on' or 'off' position using a device lock
- Size of an MCB
- DIN rail mountable
- Type A
- 6kA breaking capacity
- Integrated blue neutral lead
- Manual test button
